7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration

Certificaat
CHINA ShenzhenYijiajie Electronic Co., Ltd. certificaten
CHINA ShenzhenYijiajie Electronic Co., Ltd. certificaten
Ik ben online Chatten Nu

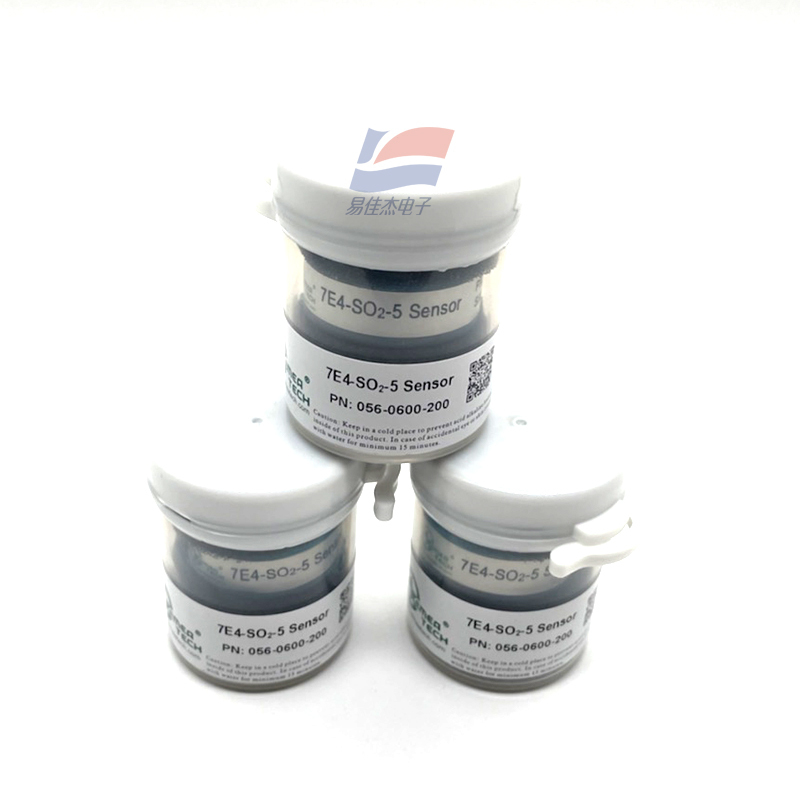

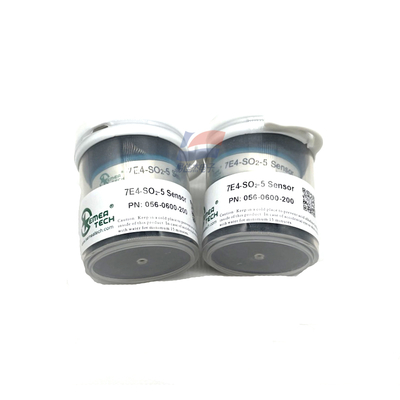

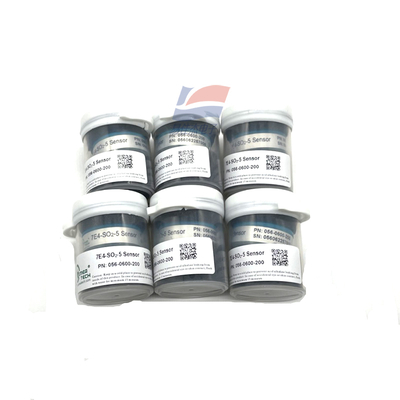

7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration

7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration
7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration 7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration 7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration 7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration

Grote Afbeelding :  7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration

Productdetails:
Plaats van herkomst: CHINA
Merknaam: YJJ
Modelnummer: 7E4-SO2-5
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: Onderhandelbaar
Verpakking Details: Standaarddoos
Levertijd: 3-5Working Days
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 3000 pcs/maand

7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration

beschrijving
Nominale Waaier: 0 ~ 5 ppm Maximale overbelasting: 20 p.p.m.
Gevoeligheid (20°C): 0.4 ± 0,2 μA/ppm Reactietijd (T90): ≤ jaren '60
Markeren:

sulfur dioxide gas sensor electrochemical

,

low concentration gas sensor 4 electrode

,

SO2 gas sensor with warranty

7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration



This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration SO2 gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect SO2 variations at parts per billion (ppb) levels.



Installation
Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor.



Performance Characteristics

Zero Signal (20℃)
< ±80 nA
Baseline Shift (-40℃ ~ 50℃) < 60 ppb (After compensation)
Resolution 10 ppb
Linearity Linear up to 5 ppm
Bias Voltage 0 mV



7E4-SO2-5 Sulfur Dioxide Gas Sensors Electrochemical 4 Electrode Low Concentration 0
