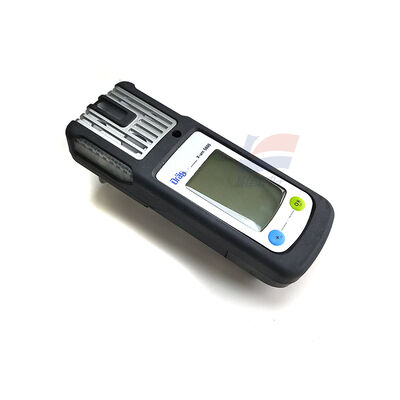

YJJ X-am 5600 Six-in-one Portable Multi-Gas Detector for Confined Space Operations

Product Description:

YJJ X-am 5600 Six-in-one Portable Multi-Gas Detector for Confined Space Operations

Features:

I. Basic Overview

Model: X-am 5600

Maximum Detection Capacity: Can simultaneously detect 1 to 6 gases, compatible with infrared IR + electrochemical XXS micro sensors, supports diffusion direct measurement + external pump for long-distance sampling, intrinsically safe explosion-proof, suitable for confined space operations and personal portable gas protection.

II. Overall Hardware Parameters

Dimensions: 47 × 130 × 44 mm Overall weight: Approximately 250 grams

Protection level: IP67 (waterproof and dustproof, can be briefly immersed in water)

Operating environment

Temperature: -20℃ to +50℃

Humidity: 10% to 95% RH (no condensation)

Air pressure: 700 to 1300 mbar

Power supply battery: NiMH rechargeable battery

Continuous working time: 9 to 10.5 hours (6 air jets fully open)

Charging time: < 4 hours

Data storage

Recorder capacity: Can store ≥ 1000 hours of data, with a recording interval of 1 minute; infrared export data, compatible with CC-Vision software for reading

Alarm system (triple alarm)

Vision: 360° all-round high-brightness LED

Sound: ≥ 90 dB (30cm distance) multi-tonal

Vibration: Anti-leak alarm in noisy conditions

Sampling method

Standard configuration: Diffusion intake (front + top dual intake ports)

Optional external sampling pump: Sampling hose up to 30m long, no need for tool disassembly, automatic start and stop, used for tanks, wells, and pipelines for pre-inspection

Explosion-proof certification

ATEX / IECEx: II 1G Ex ia IIC T4 Ga, can be used in Zone 0 explosive hazardous environments; also has coal mine I M1 explosion-proof grade

III. Sensors that can be equipped (range + resolution)

(1) Infrared IR sensor (life expectancy 5 to 8 years, annual calibration sufficient) Table

Gas Range Resolution

Flammable gas EX (IR) 0 - 100% LEL 0.1% LEL

CO₂ (IR dual sensor) 0 - 5% Vol 0.01% Vol

(2) Electrochemical XXS toxic gas (guaranteed for 3 years) Table

Gas Measurement Range Resolution

O₂ Oxygen 0 - 25% Vol 0.1% Vol

CO Carbon Monoxide 0 - 500 ppm 1 ppm

H₂S Hydrogen Sulfide 0 - 100 ppm 0.1 ppm

Cl₂ Chlorine Gas 0 - 10 ppm 0.01 ppm

NO₂ Nitrogen Dioxide 0 - 50 ppm 0.1 ppm

SO₂ Sulfur Dioxide 0 - 100 ppm 0.1 ppm

NH₃ Ammonia Gas 0 - 100 ppm 1 ppm

HCN Hydrogen Cyanide 0 - 50 ppm 0.1 ppm

O₃ Ozone 0 - 10 ppm 0.01 ppm

Standard six-gas combination (most commonly used)

IR-LEL + IR-CO₂ + O₂ + CO + H₂S + Cl₂ (chlorine gas configuration, corresponding to your CL2-A1 sensor condition)

Four. Core Functions

Dual intake ports, can measure gas normally even when placed in a pocket; only 2 buttons, extremely simple operation

Can be connected to X-zone 5500 area monitoring system, wireless networking for regional gas monitoring

Supports fall alarm, emergency call for personnel in a state of rest (optional accessory)

Sensor is not soldered, can be quickly plugged in and replaced on-site, low maintenance cost

Supports X-dock automatic calibration / shock testing station, batch instrument management

Five. Main Applications

Restricted space operations (core scenario)

Pre-detection before entering sewage wells, storage tanks, ship cabins, underground pipe corridors, pump suction remote gas detection, detecting lack of oxygen, combustible, and toxic gases.

Municipal water supply / sewage treatment plants

Chlorine filling room chlorine leakage, hydrogen sulfide, biogas, CO₂ inspection.

Chemical, chlor-alkali, fine chemical industry

Chlorine, sulfur dioxide, ammonia, cyanide workshop personal personal protection.

Ships, offshore platforms (meeting maritime MSC.581 regulations)

Gas detection in cargo holds, engine rooms of enclosed spaces.

Safety supervision emergency, environmental inspection, enclosed pipeline leak detection.
