Productdetails:
|
| Nominal Power: | 300 watts | Power Range: | 180 - 320 watts |
|---|---|---|---|
| Nominal Current: | 21 amps (DC) | Current Range: | 10 - 22 amps (DC) |
| Ignition Voltage: | 23 - 35 kilovolts | Nominal Operating Voltage: | 14 volts (DC) |
| Markeren: | 300W xenon medische lamp,endoscopie koude lichtbron,PE300BFA xenon lamp |
||

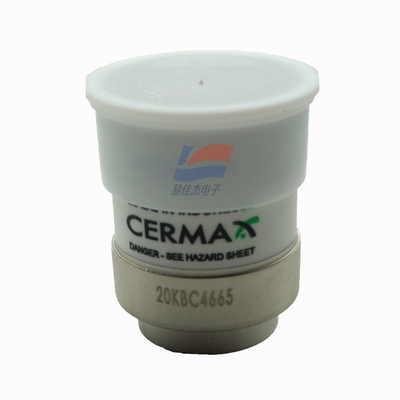

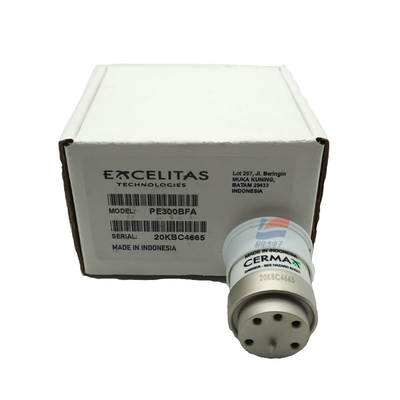

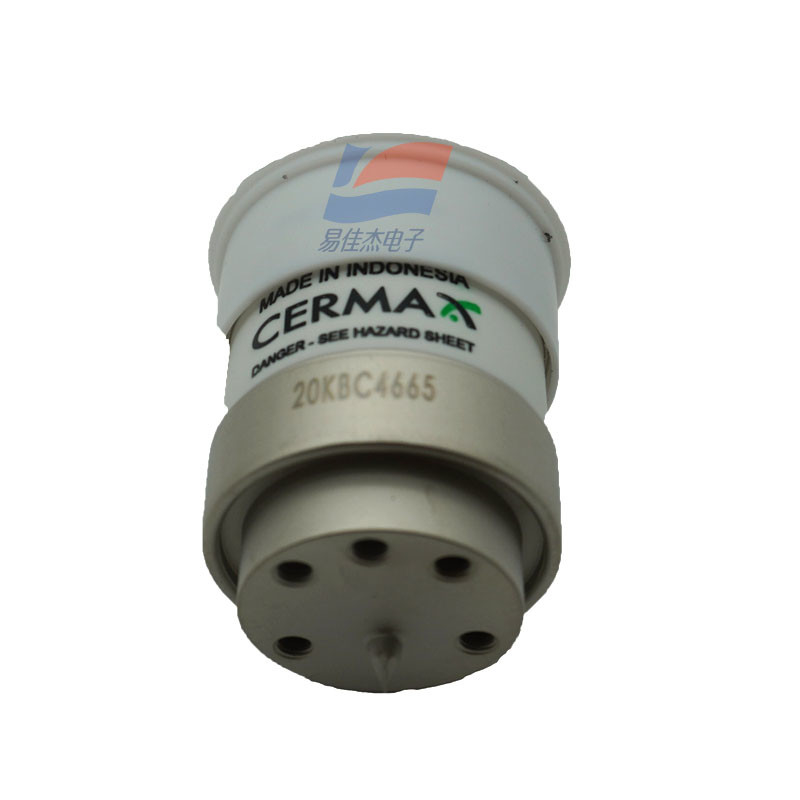

PE300BFA 300W Xenon Lamp Koude Lichtbron voor Medische Endoscopie
Toepassingsscenario's:
Productkenmerken:
| Fabrikant Productnummer | PE300BFA |
| Serie | Cermax® |
| Type | Kortboog Parabolische Lamp |
| Stijl | Keramische Behuizing |
| Nominaal Vermogen | 300 watt |
| Vermogensbereik | 180 - 320 watt |
| Nominale Stroom | 21 ampère (DC) |
| Stroombereik | 10 - 22 ampère (DC) |
| Ontstekingsspanning | 23 - 35 kilovolt (systeemafhankelijk) |
| Nominale Bedrijfsspanning | 14 volt (DC) |
| Bedrijfsspanningsbereik | 13 - 16 volt (DC) |
| Levensduur | 1000 uur typisch |
| Maximum Temperatuur | 150 °C |
| Totale Zichtbare Output | 5000 lumen |
| Stralingsoutput | 50 watt |
| UV-output (<390 nm) | 2,6 watt |
| IR-output (>770 nm) | 29 watt |
| Reflector Type | Parabolisch |
| Vensterdiameter | 1 inch (25,4 mm) |
| Gefocuste Output (8mm Aperture) | 3130 lumen, 29 watt |
| Gefocuste Output (6mm Aperture) | 1410 lumen, 14 watt |
| Piekintensiteit | 3,0 x 10^5 candela |
| Kleurtemperatuur | 5600 - 5900 kelvin |
| Boogafstand | 0,049 inch (1,24 mm) |
| Kathode Defocus 'd' | 0,003 inch (0,08 mm) |
| Gewicht | 132 gram |
![]()
